Ringlok Scaffold

Ringlock Scaffolding


Ringlock
Product Code: APBB028
Description: Ringlock Diagonal Bay Brace

The Bay Brace is used for the lateral bracing of Ringlock scaffolds. It can also be used as compression and tension members for cantilevers or spurs, transmitting loads back into the main scaffold structure. Bay Braces are used as mid and top guard rails in conjunction with the Stair Stringer and Tread combination.


Specifications

  • Self Weight - 7.88 - 11.82 Kg
  • Varying lengths - 0.88 - 3.05m (2'-9" - 10'-0")

Ringlock
Product Code: APBC001
Description: Ringlock Starter (Base Collar)

The Starter (Base Collar) is the beginning of the Ringlock scaffolding system. It sits upon a fixed or Adjustable Base.


Specifications

  • Self Weight - 2.43 Kg
  • Effective Length - 12″ / 0.31m

Ringlock
Product Code: APBCF01

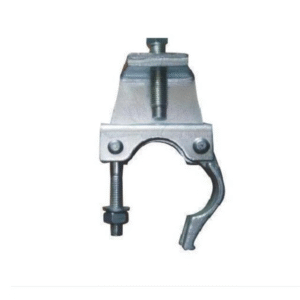

Description: Ringlock Beam Clamp (Rigid)

Rigid Beam Clamps are designed to tie into or off to structural steel beams or for a more specialized design by hanging or suspending scaffold, creating 90-degree angles.


Specifications

  • Self Weight - 1.64 Kg
  • Fixed Beam Clamp

Ringlock
Product Code: APBCW01
Description: Ringlock Beam Clamp (Swivel)

Swivel Beam Clamps are designed to tie into or off to structural steel beams creating a variety of angles.


Specifications

  • Self Weight - 1.71 Kg
  • Swivel Beam Clamp

Ringlock
Product Code: APBP001
Description: Ringlock Base Plate

The Base Plate is used as a starting base for a scaffold. A tube can be placed directly onto the spigot located at the center of the Base Plate.


Specifications

  • Self Weight - 1.07 Kg

Ringlock
Product Code: APCA010
Description: Ringlock Caster Adapter

The Adapter for the 0.3m Caster is used as a base connection point to a 0.3m Caster and provides a base spigot to use with standards or Base Collars to begin scaffold construction.


Specifications

  • Self Weight - 4.24 Kg
  • Effective length - 10″ / 0.025m

Ringlock
Product Code: APCB050
Description: Ringlock Swivel Clamp Brace

The Swivel Clamp Brace is used for the lateral bracing of modular scaffolding. It can also be used as a mid or top guardrail or a handrail in conjunction with the Steel Stair System. The Swivel Clamp Brace gives the user more versatility to attach the brace to any location on the vertical member of the scaffold.


Specifications

  • Self Weight - 7.25 - 11.99 Kg
  • Effective length - 1.52 - 3.04m (5'-0" - 10'-0")

Ringlock
Product Code: APCW001
Description: Ringlock Caster 12"

The 12″ Castor is designed to provide mobility to a medium to large size scaffold tower allowing the tower to roll across flat surfaces.


Specifications

  • Self Weight - 16.01 Kg
  • Effective Diameter - 12″/0.31m

Ringlock
Product Code: APIBRAC
Description: Ringlock Right Angle Clamp (I-Bolt)

Right Angle Clamp (I-Bolt) are designed to be used in conjunction with Steel Tube to create 90 degree angles.


Specifications

  • Self Weight - 1.48 Kg

Ringlock
Product Code: APIBSWC
Description: Ringlock Swivel Clamp (I-Bolt)

Swivel clamps are designed to be used in conjunction with Steel Tube to create any angle between the tubes. Can also be used as bracing when used with steel tubes.


Specifications

  • Self Weight - 1.48 Kg

Ringlock
Product Code: APLO200
Description: Ringlock Ledger O-Type

The Ledger O-Type is the horizontal member of Ringlock scaffolding. Shorter Ledgers are used as horizontal support for Ringlock Planks. Ledgers O-Type are also typically used as mid rail and top guard rails.


Specifications

  • Self Weight - 2.96 - 11.59 Kg
  • Lengths Available - 0.61 - 3.05m (2'-0" - 10'-0")

Ringlock
Product Code: APUBP
Description: Ringlock Universal Base Plate

The Universal Base Plate is designed to be used in conjunction with the Universal Screw. Bolt these two components together to create a very strong Base, specifically for high load applications such as shoring and forming.


Specifications

  • Self Weight - 2.15 Kg
  • Effective Dimension - 6″ x 6″/0.152m x 0.152m

Ringlock
Product Code: APLB001
Description: Ringlock Ladder Bracket

Ladder Brackets are designed to attach the ladders to the vertical members of the scaffold tower.


Specifications

  • Self Weight - 3.18 Kg

Ringlock
Product Code: APLG140
Description: Ringlock Lattice Girder/Beam (Steel) (0.5m)

Lattice girders are horizontal members of Ringlock scaffolding that allow for scaffolding over large spans or gaps of 14’ – 28’ / 4.26m to 8.52m.


Specifications

  • Self Weight - 47.09 - 92.87 Kg
  • Available lengths - 14', 17', 21' & 28'

Ringlock
Product Code: APLLSS01
Description: Ringlock Leg Lock

The Leg Lock, used in pairs, is designed to attach to the bottom rosette of the top Standard and to the top rosette of the bottom Standard. This joins the standards together in preparation for suspended or lifted scaffold applications.


Specifications

  • Self Weight - 3.66 Kg
  • Effective Length - 19.7″/ 0.50m

Ringlock
Product Code: APMT021

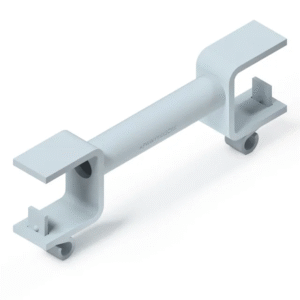

Description: Ringlock Mid Transom

By straddling the outer Ledgers or Transoms, the Mid Transom can create a transom at the lift anywhere inside the bay. Mid Transoms can also be used to create openings within the planked bay for Ladder access or to avoid a permanent obstruction.


Specifications

  • Self Weight - 3.90 - 10.10 Kg
  • Available Lengths - 0.65 - 2.43m

Ringlock
Product Code: APPTP01
Description: Ringlock Pig Tail Pin

The Pig Tail Pin is designed to lock two Standards together to resist uplift.


Specifications

  • Self Weight - 0.06 Kg
  • Effective Length - 2.5″ / 0.065m

Ringlock
Product Code: APRAAC1
Description: Ringlock Right Angle Adapter Clamp

The Right Angle Adapter Clamp is designed to easily join a scaffold tube directly to the rosette at 90-degrees.


Specifications

  • Self Weight - 1.56 Kg
  • Effective Length - 2.5″ / 0.065m

Ringlock
Product Code: APRC001
Description: Ringlock Rosette Clamp

The Rosette Clamp allows users to add an additional rosette to any point along the vertical (tube Standard). It can accommodate up to six connection points.


Specifications

  • Self Weight - 1.19 Kg

Ringlock
Product Code: APS0164
Description: Ringlock Standard

The Standard with Hanging Spigot is the vertical member of the Ringlock scaffolding system that utilizes a removable spigot. The Standard provides the vertical support for the scaffold system, specifically for hanging applications.


Specifications

  • Self Weight - 2.35 - 16.08 Kg
  • Available Sizes - 0.5, 1.0, 1.5, 2.0 & 3.0m
  • Available - 1, 2, 3, 4 & 6 Rings

Ringlock
Product Code: APSAC01
Description: Ringlock Standard

The Spigot Adapter Clamp allows the connection of Ringlock Standards at intermediate locations along the length of O-Type Ledgers, Truss Ledgers, and Girders.


Specifications

  • Self Weight - 1.85 Kg

Ringlock
Product Code: APSB010
Description: Ringlock Side/Hop-Up Bracket O-Type

The Side Bracket (Hop-Up) O-Type is used to extend the working platform closer to the building structure in cases where the main scaffold cannot be erected directly next to the working face.


Specifications

  • Self Weight - 4.55 - 8.46 Kg

Ringlock
Product Code: APSBC34
Description: Ringlock Side/Console Bracket O-Type

The Side (Console) Bracket O-Type is used at the edge of a scaffold to extend or widen the working platform.


Specifications

  • Self Weight - 12.75 - 13.09 Kg
  • Available Sizes - 1.065 & 1.15m

Ringlock
Product Code: APSCJ001
Description: Ringlock Screw Jack

The Screwjack is used as a starting base for a scaffold. It is adjustable in height to allow for compensation on uneven surfaces so that a level scaffold is always attainable.


Specifications

  • Self Weight - 3.78 Kg
  • Effective Length - 2’-0″ / 0.60 m

Ringlock
Product Code: APSJS01
Description: Ringlock Screw Jack for Caster

The Solid Screwjack for Caster is designed to be used in conjunction with a 0.3m Caster and used as a starting base for a scaffold. It is adjustable in height to allow for compensation on uneven surfaces so that a level scaffold is always attainable.


Specifications

  • Self Weight - 8.44 Kg
  • Effective Length - 2’3″ / 0.69 m

Ringlock
Product Code: APSP001

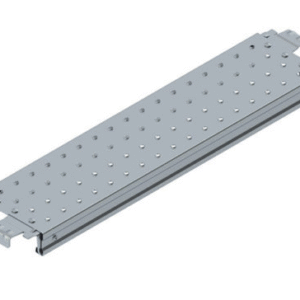

Description: Ringlock Steel Plank 240mm O-Type

The Steel Plank is used to form the working platform. The number of Steel Planks used determines the width of the platform. The Steel Planks span the length of the bay and hook onto the supporting Ledger or Transom. There is an anti-lift system for the steel planks to prevent uplift in adverse weather conditions.


Specifications

  • Self Weight - 7.01 - 19.57 Kg
  • Available Lengths - 0.88 - 3.05 m

Ringlock
Product Code: APSS026
Description: Ringlock Stair Stringer

The Steel Stair Stringer is the diagonal member of the 10 Leg Steel Stair System. The Stringer must be used in pairs in order to support the Stair Treads. The Stringer is used for a 2.0m lift height and is also available for a 1.0m lift height.


Specifications

  • Self Weight - 8.95 Kg
  • Effective Length - 1.065m (3'-6")

Ringlock
Product Code: APSSR01
Description: Ringlock Storage Rack

The Scaffold Rack is designed for storage of larger items such as Standards, Ledgers, and Steel Planks.


Specifications

  • Self Weight - 45.61 Kg

Ringlock
Product Code: APST081
Description: Ringlock Stair Tread

The Stair Tread is designed as the horizontal member connecting to the Stair Stringers (both 1.0m and 2.0m lift) providing the steps of the stair system.


Specifications

  • Self Weight - 8.64 Kg

Ringlock
Product Code: APSWAC01
Description: Ringlock Swivel Adapter Clamp

The Swivel Adapter Clamp is designed to easily join a scaffold tube to the rosette of a Ringlock Scaffold, producing a variety of angles and configurations.


Specifications

  • Self Weight - 1.60 Kg

Ringlock
Product Code: APSWJ01
Description: Ringlock Swivel Jack

The Swiveljack is used as a starting base for a scaffold. It is adjustable in height and angle to allow for compensation on sloped surfaces where a Screwjack (Base Jack) cannot be used.


Specifications

  • Self Weight - 6.02 Kg
  • Effective Length - 2’7″ / 0.78 m

Ringlock
Product Code: APTL060
Description: Ringlock Truss Ledger O-Type

The Truss Ledger O-Type is engineered to enable higher service loads to the working platform. The reinforcing tube and stiffener plates support the top tube, providing additional strength.


Specifications

  • Self Weight - 12.51 - 21.12 Kg
  • Available Lengths - 6', 7' 8' & 10'

Ringlock
Product Code: APVT016
Description: Ringlock Vertical Mid Transom (0.5m)

The Vertical Mid Transom fits vertically between two ledgers positioned 0.5m apart and attached with Half Couplers. When positioned at mid or third points between two Ledgers the maximum point load capacity is increased.


Specifications

  • Self Weight - 3.36 Kg
  • Effective Length - 1’7″ / 0.50m
